Gauge family 01 / 11
Metric thread plug & ring gauges, manufactured in Pune.
DIN ISO 1502Metric 60° · DIN ISO 1502 / ANSI ASME B1.16M

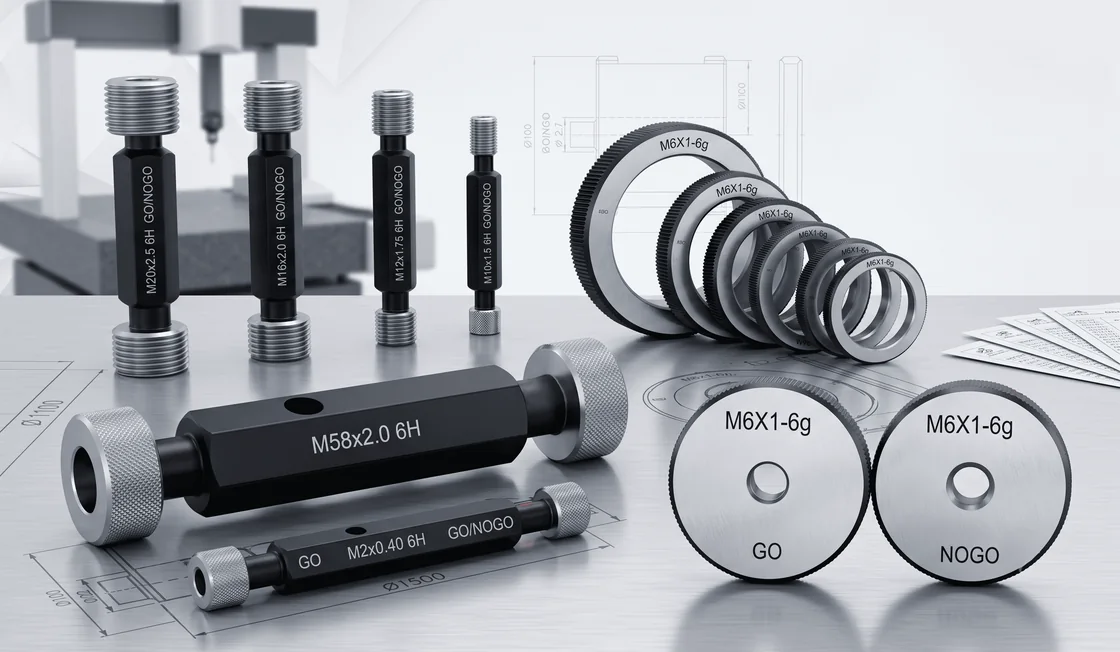

Metric thread plug and ring gauges manufactured to DIN ISO 1502. GO and NOT-GO members verify pitch diameter and functional fit across the full metric range.
Thread plugs
1 – 480 mm
Thread rings
1 – 500 mm
| Diameter | Pitch | Plug class | Ring class |
|---|---|---|---|
| M1 | 0.25 mm | 5H | 6h |
| M2 | 0.40 mm | 6H | 6g |
| M3 | 0.50 mm | 6H | 6g |
| M4 | 0.70 mm | 6H | 6g |
GO gauge
Enters and passes the complete length of the thread, screwed by hand without excessive force.
NOT-GO gauge
May not enter more than two turns from either end, screwed by hand without excessive force.
Ground on our Matrix thread grinders and verified on TRIMOS H4 before every certificate is issued.
