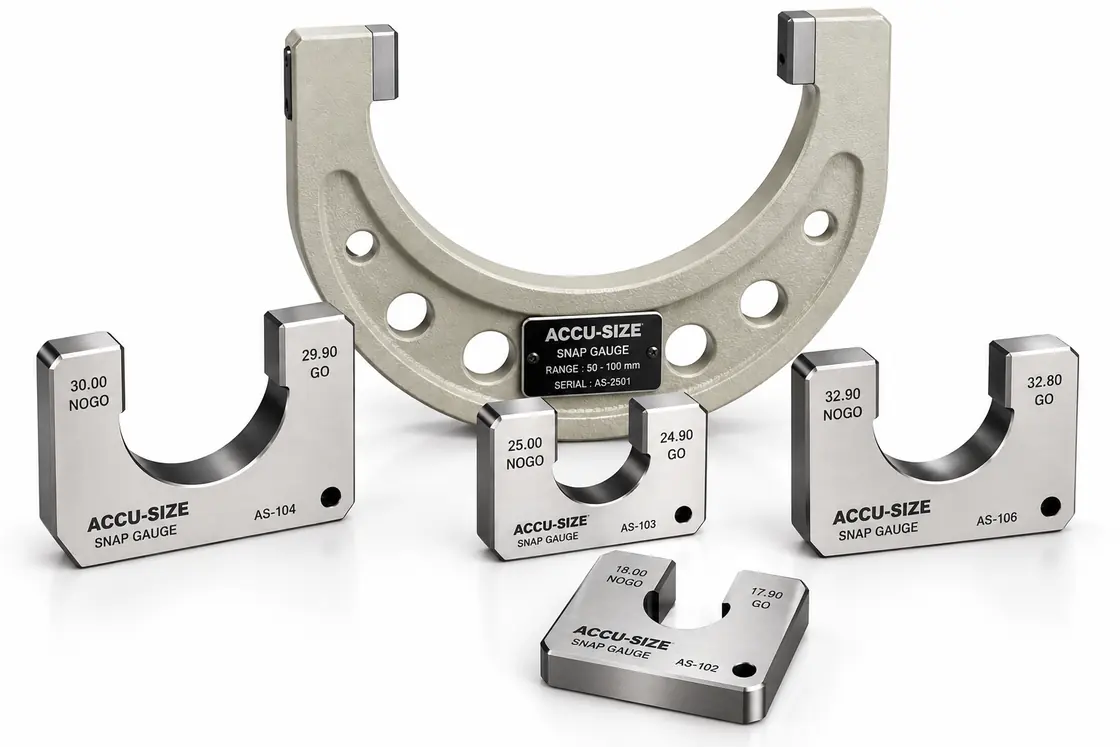

Accu-size GO / NOT-GO snap gauge set, including a micrometer-frame snap gauge for external diameter checks — detail
Gauge family 09 / 11

Snap gauges, manufactured in Pune.

DIN 7164IS 3455Basic dims ISO 286 · Gauging DIN 7164-1966 / IS 3455-1971 / IS 7876-1975

Snap gauges for checking outside dimensions such as external diameters, with large contact area, apt contact pressure and superior wear resistance. Available in customized dimensions.

Single-end progressive
Ø3 – 160 mm
Double-ended (GO & NOGO)
Ø3 – 100 mm
Double-ended I-type
Ø100 – 300 mm
Representative sizes & classes
TypeRange
Single-end progressiveØ3 – 160 mm
Double-ended, separate GO/NOGOØ3 – 100 mm
Double-ended I-typeØ100 – 300 mm

Finished on our cylindrical and surface grinders, verified on TRIMOS H4 before every certificate is issued.

Common questions

Questions about Snap gauges

What is a snap gauges?

GO / NOT-GO snap gauges for external diameters, to DIN 7164 & IS 3455.

Which standard does it follow?

Manufactured to DIN 7164, IS 3455.

What range is available?

Available ranges: Single-end progressive Ø3 – 160 mm; Double-ended (GO & NOGO) Ø3 – 100 mm; Double-ended I-type Ø100 – 300 mm.

How is it measured and verified?

Each gauge is measured and verified on our in-house equipment, against the sizes and classes shown in the table above.

How do I request a quote?

Share the thread size and standard on our quote page and we will confirm class, availability and pricing within one business day.
